■ Introduction

It is a summary from Raspberry Pi 3 Model B + (hereinafter referred to as “Raspai”) until OS startup after purchasing.

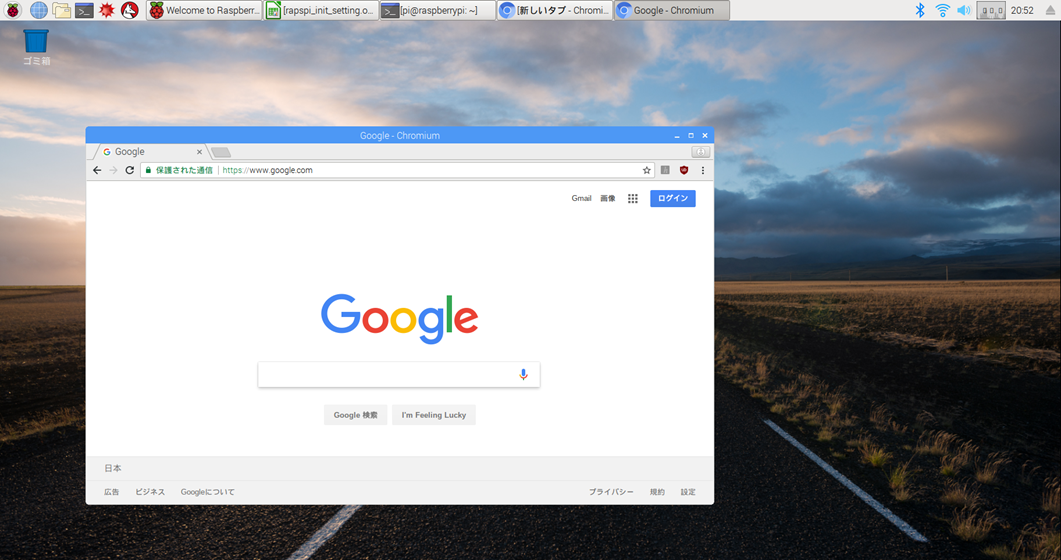

In addition, I will perform internet browsing using wifi, using wireless mouse with Bluetooth.

■ Implementation Flow

Preparation 1. Preparation of Raspberry and peripheral equipment

Preparation 2. Connection with Raspberry

Preparation 3. Place OS data on the SD card

Task 1. Power ON

Task 2. OS Setup

① Language selection

② OS installation selection

③ OS installation complete

Task 3. Initial setting

① Region selection

② Input default user password

③Wifi setting

④ System update

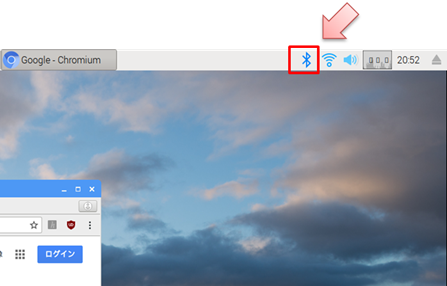

Task 4. Bluetooth settings

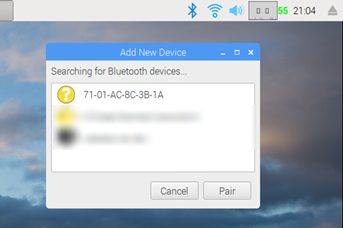

① Add device

② Device selection

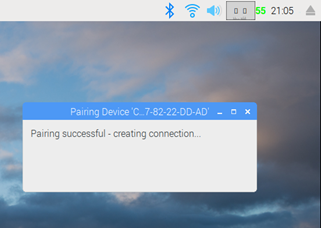

③ Establish pairing

■ Preparation 1. Preparation of Raspberry and peripheral devices

Because only Raspberry’s box contains the foundation, we prepare peripheral equipment together for operation.

# Most purchased with Akiba

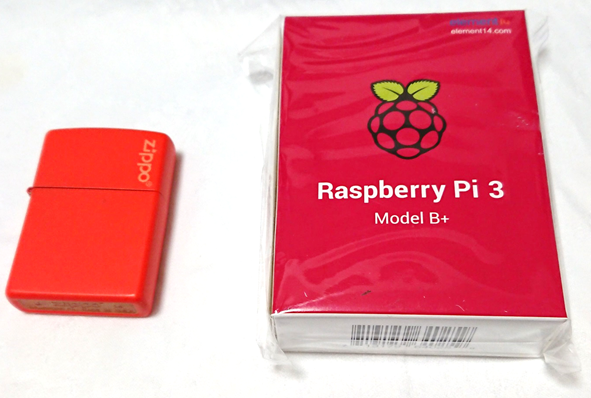

· RaspberryPi Opening Ceremony

· Preparation of this time

Mandatory / if any	device	price	Remarks
Required	Raspberry Pi 3 Model B +	About 5000 yen	Purchase with Akiba
Required	Power supply for Raspberry Pi (5 V 3.0 A)	About 1500 yen	Purchase with Akiba
	Case for Raspberry Pi 3	About 1500 yen	Purchase with Akiba
Required	microSD 128GB	About 5000 yen	Purchase with Akiba
	microSD reader writer	About 1500 yen?	I stayed home.
	Wired mouse	200 yen	Purchase with Akiba / ordinary USB (A connector) terminal
Required	Wired Keyboard	About 1000 yen?	What was at home / ordinary USB (A connector) terminal
Required	monitor	About 15000 yen?	What was at home
Required	HDMI cable	1000 yen	Purchase with Akiba / ordinary USB (A connector) terminal / ordinary HDMI terminal
	LAN cable	500 yen	Buy with Akiba / wifi If you have an environment you do not need
Required	PC connected to the net	Ten thousand yen	PC writing this article

■ Preparation 2. Connection with Raspberry

· We will continue to connect the prepared items.

※ SD card is prepared separately.

· Before connecting

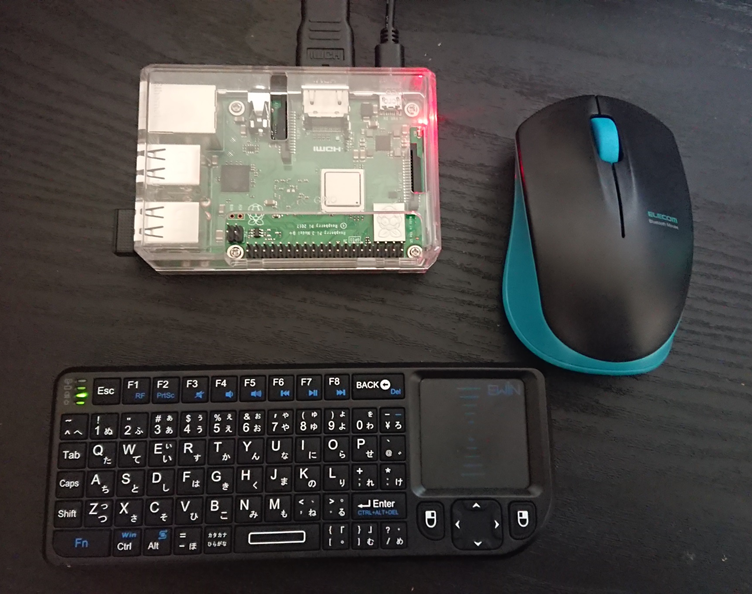

· After connection

■ Preparation 3. Place OS data on the SD card

Razpai can not be used just by turning on the power. It is necessary to put OS (noobs) in the SD card. Download the software from the PC connected to the net and put it in the SD card.

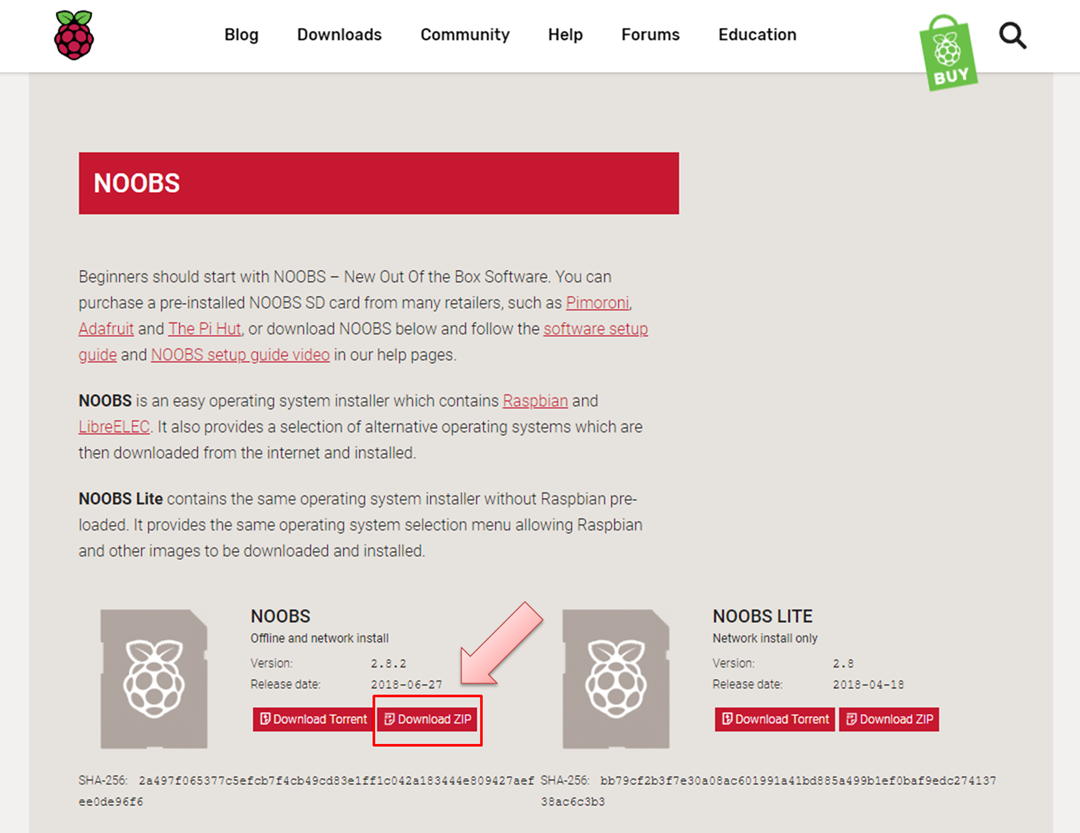

· OS (noob) download

[Raspberry] noobs Download

https://www.raspberrypi.org/downloads/noobs/

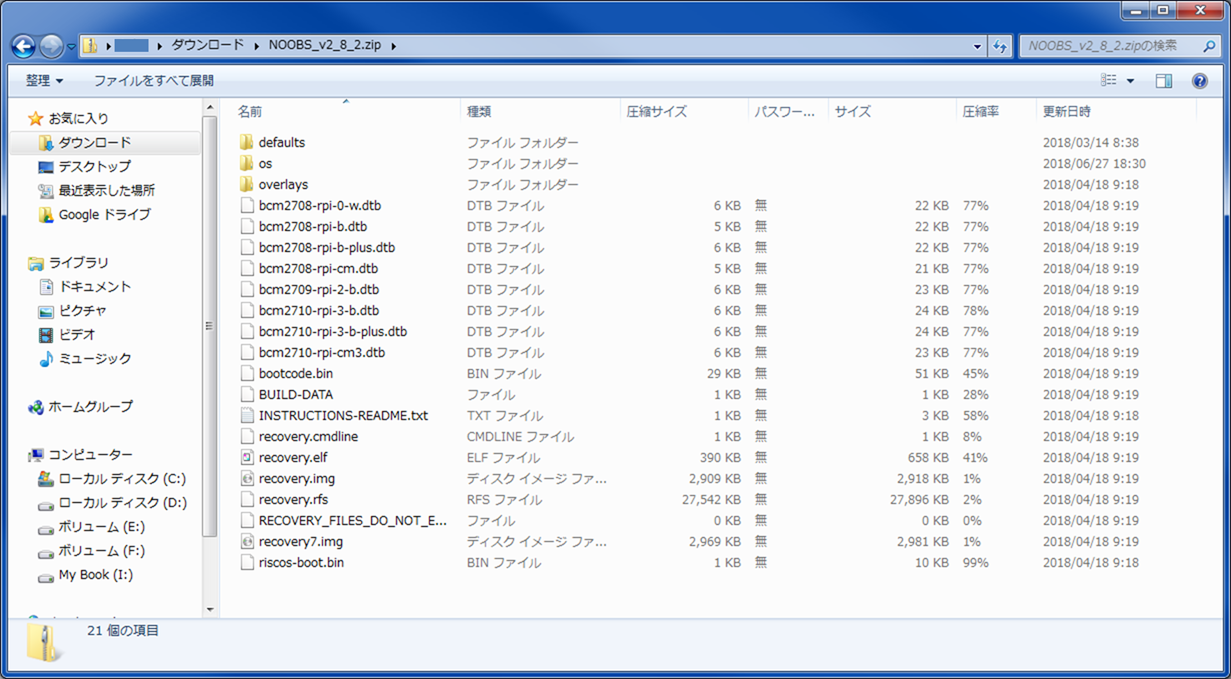

· Copy all thaws to SD card

※SDカードが64GB以上の場合は、さらに別に事前処理をする必要があります。

Raspberry Pi向けに64GB以上のmicroSDをFAT32にフォーマットする@windows7

https://qiita.com/Higemal/items/2034ef9f772416b4dbb7

■ Operation 1. Power ON

Razpai turns on automatically when power is supplied from the power supply.

(The power switch is not on the body of the razz pie.)

■ Work 2. OS Setup

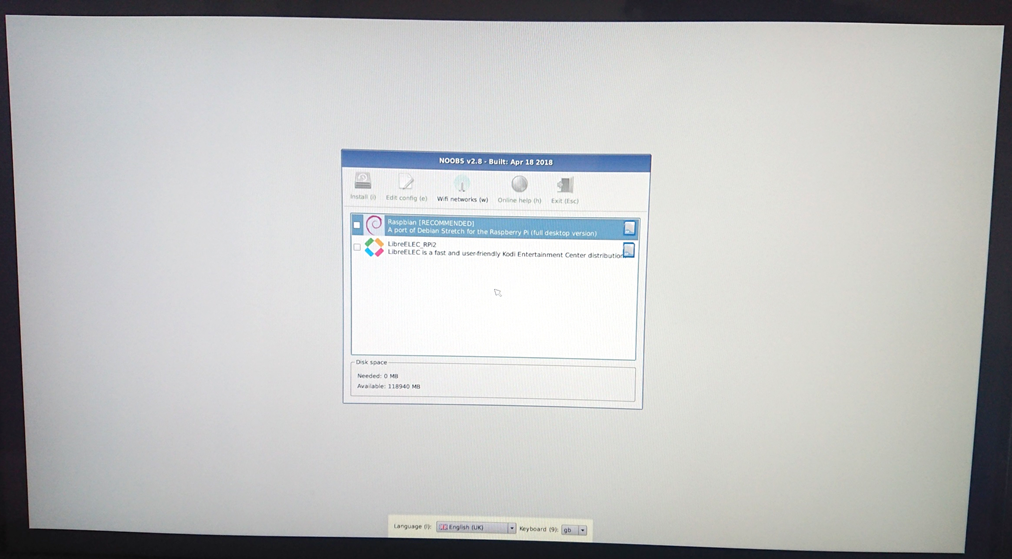

After waiting for a while, the screen below starts up.

① Language selection

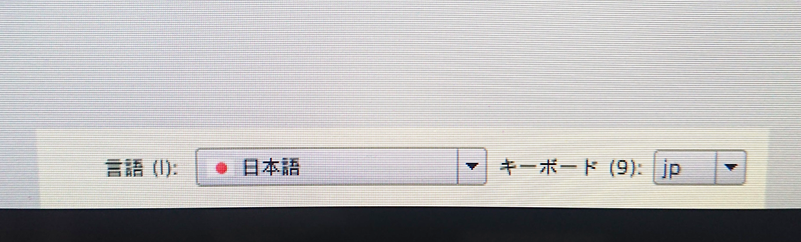

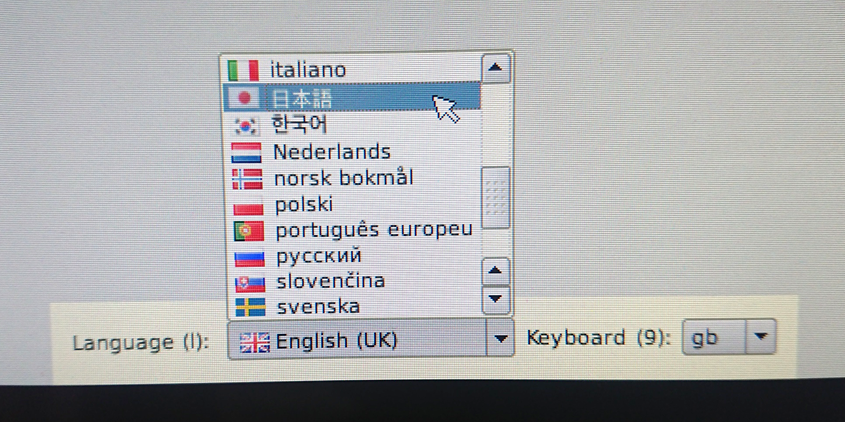

Select “Japanese” from “Language (l):” at the bottom of the screen.

② OS installation selection

Select “Raspbian” and click “Install (i)” at the top.

· Select “Yes” for confirmation.

③ OS installation complete

· Wait for a while.

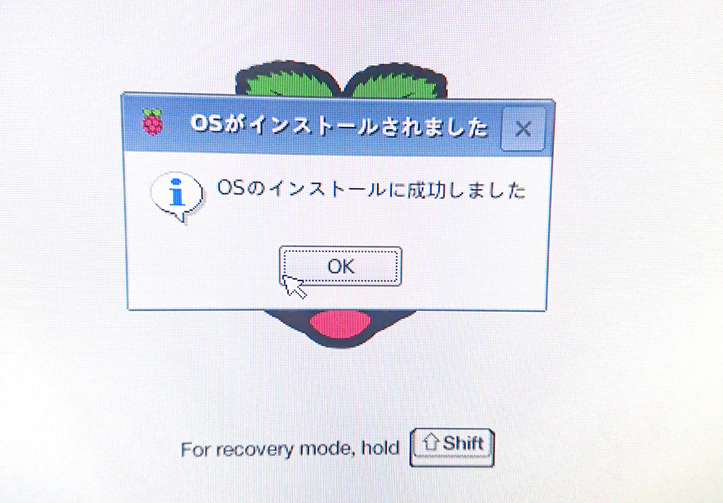

· Installation completion will be announced.

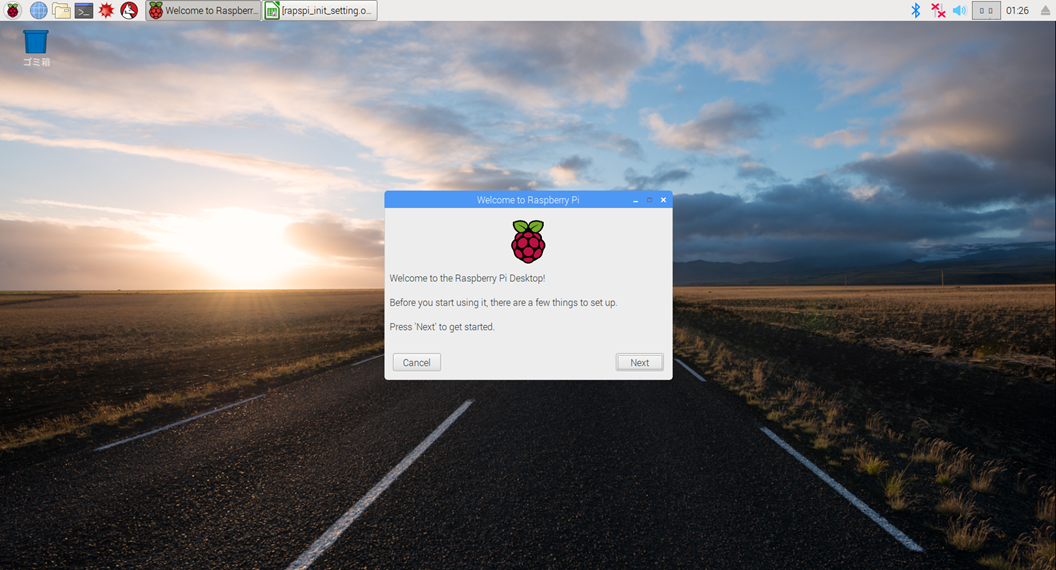

– The desktop screen has started.



# You can get a screen dump with screen shot by coming so far.
